New dimensions in vibration analysis
Combine the benefits of our flexible Fiber System with high-precision 3D vibration data.
The 3D-Fiber Head from the SMART series enables precise, non-contact vibration measurements in three dimensions using a single device that integrates multiple functions. A SMART Multi-Fiber can process up to four separate measurement channels simultaneously, offering flexibility and advanced data acquisition capabilities. Its compact design and compatibility with other SMART-series devices make it ideal for complex research and product development tasks.
01

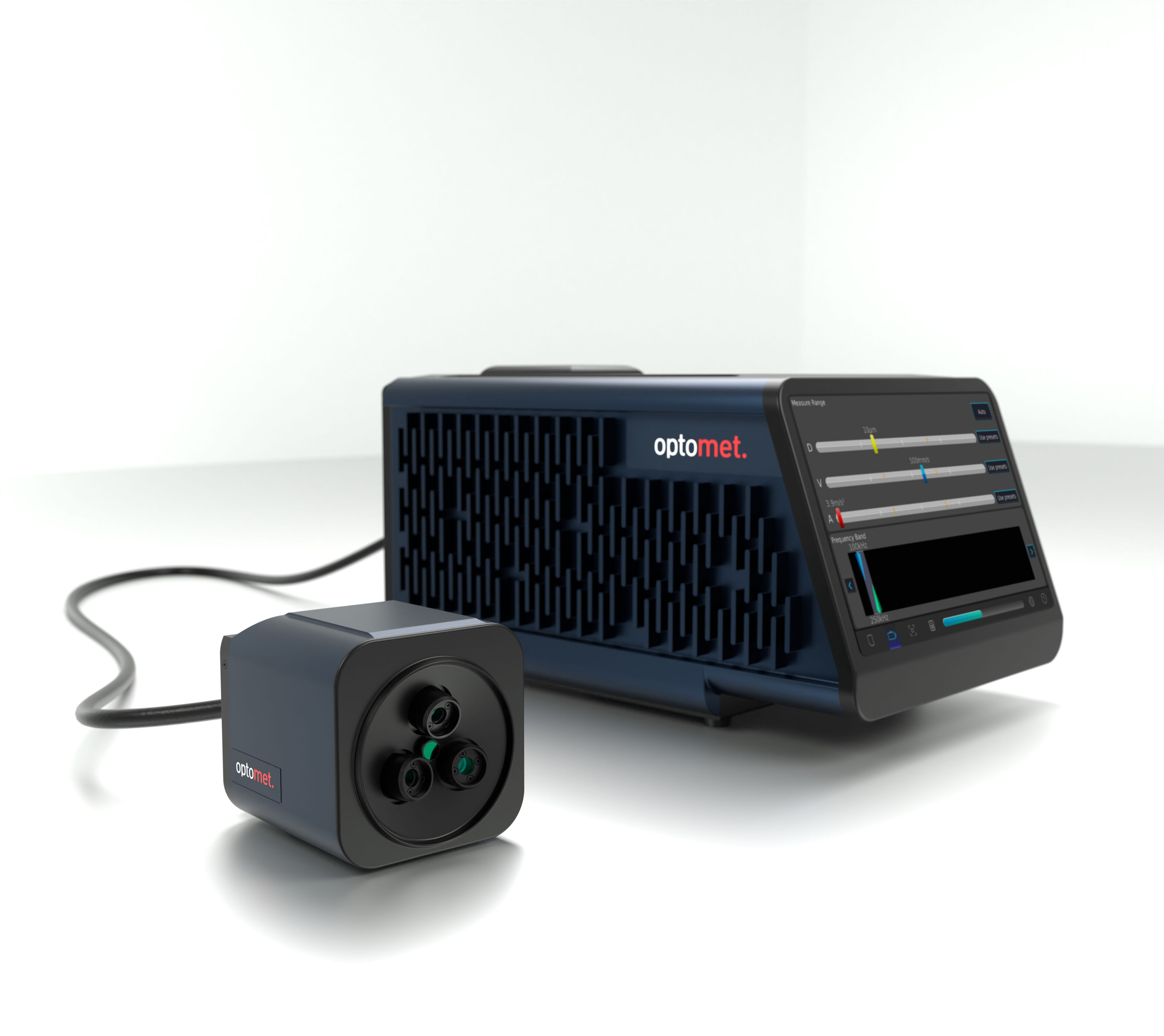

3D Fiber Head: Three-dimensional vibration measurements
The Optomet 3D-Fiber Head captures vibrations along all three spatial axes. Three laser beams measure the object's motion from different angles, while the SMART Multi-Fiber automatically converts the signals into the Cartesian X, Y, and Z axes. This enables the system to precisely analyze three-dimensional motion patterns, making it ideal for applications such as deformation analysis and 3D vibration characterization.
02
Modular Fiber System
The SMART Multi-Fiber offers maximum flexibility and scalability for a wide range of measurement requirements. Its modular design allows the system to be tailored to individual needs, enabling precise and versatile vibration measurements.
03
Synchronized measurements
Experience the precision of perfectly synchronized measurements. Our system ensures that data collected from multiple points is precisely aligned in time, providing a coherent and detailed analysis of vibration phenomena.
04
Configure your SMART 3D-Fiber
Combine standard equipment and options to build your laser vibrometer.
Frequency bandwidth
Choose one tierUpgrades
Multiple selectionVelocity range
Choose one tierUpgrades
Multiple selectionMeasured quantities
Multiple selection05
Variants and components
Mid-Range Autofocus Fiber Head
- Dimensions (L x W x H)
- 159 mm x 43 mm x 68 mm (without lens)
- Working distance
- 135 mm to 10 m
Long-Range Autofocus Fiber Head
- Dimensions (L x W x H)
- 159 mm x 43 mm x 68 mm (without lens)
- Working distance
- 450 mm to 100 m
Compact Fiber Head
- Dimensions (L x W x H)
- 94 mm x 43 mm x 68 mm (without lens)
- Working distance
- 25 to 189 mm
Compact 3D Fiber Head
- Dimensions (L x W x H)
- 107 mm x 100 mm x 102 mm (without lens)
- Working distance
- 83 mm
06
Technical data
- Measurement Quantities
- Velocity, displacement, acceleration
- Frequency range
- DC to 50 MHz Individually selectable via freely configurable band-pass filters for velocity, displacement, and acceleration signals
- Max. Speed
- 50 m/s
- Measurement Ranges
- Measurement range limits can be freely set between 1 mm/s and 50 m/s for velocity - 10 nm and 100 m for displacement - 10 m/s² and 100 million m/s² for acceleration
- Signal Processing
- Digital (FPGA-based)
- Filter
- Low-pass and high-pass filters are defined by the selected frequency range Tracking filter: off / slow / fast
- User Interface
- 7" Full HD+ touchscreen with 1000 nits peak brightness
- Dimensions
- Length × width × height (without Fiber Head): 308 × 192 × 152 mm
- Weight
- ~ 3.3 kg to 4.2 kg + Fiber Head
- Power Supply
- 100 - 240 V AC (50-60 Hz) or 12 V DC
- Portability
- Convenient all-in-one design for effortless transport and easy setup
- Calibration interval
- Every 24 months (recommended)
- Working distance
- - Variable working distance from 25 mm to 100 m - Choice of different Fiber Heads
- Laser wavelength
- - Measurement laser: 1550 nm, targeting laser: 510-530 nm
- Laser safety class
- Measurement laser
- Output power: <10 mW, Class 1
- Targeting laser
- Output power: <1 mW, Class 2
- Optics
- Automatic and manual focusing
- Fiber optic cable
- 2 m as standard; optionally available with fiber-optic cables up to 50 m long
- Operating temperature
- 0 °C to 40 °C
- Storage Temperature
- -10 °C to 65 °C
- Relative Humidity
- Max. 80%, non-condensing
- Remote Control
- - Simultaneous connection and control of multiple vibrometers for reference, multi-point, and 3D vibration measurements
- Data Acquisition
- - Phase-synchronous acquisition of vibrometer signals and reference channels - Convenient access to all data in a single software environment—from vibrometers to multiple reference sensors - Live view of measured time-domain data - Multi-channel arbitrary waveform generator for generating predefined signals (sine, sine sweep, square wave, random, etc.) or custom signals from imported .csv or .wav files
- Measurement Analysis
- - Real-time Fast Fourier Transform for responsive data analysis - Frequency-domain display with up to 536 million FFT lines - Phase-correct calculation of the frequency response function (FRF) - Live spectrogram of ongoing measurement FFTs
- Data Import/Export
- - Export time- and frequency-domain data to .csv, .h5, or .mat files - Export time-domain data as a .wav audio file - Save and load projects in the native file format
- Frequency Options
- Frequency 250 kHz — Measurement of frequencies up to 250 kHz, covering the entire acoustic range and beyond (standard) Frequency 5 MHz — Measurement of frequencies up to 5 MHz (option) Frequency 15 MHz — Measurement of frequencies up to 15 MHz (optional) Frequency 25 MHz — Measurement of frequencies up to 25 MHz (optional) Frequency 35 MHz — Measurement of frequencies up to 35 MHz (optional) Frequency 50 MHz — Measurement of frequencies up to 50 MHz, pushing the limits of what is technologically possible (optional) Frequency Upgrade M — Increase the frequency limit of any option by 500 kHz (optional) Frequency Upgrade L — Increase the frequency limit of any option by 1 MHz (optional) Frequency Upgrade XL — Increase the frequency limit of any option by 5 MHz (optional)
- Velocity Options
- Basic — Continuously adjustable velocity measurement range between 10 mm/s and 15 m/s (standard) High Speed — Measure velocities up to 25 m/s (optional) Master — Measurement of velocities up to 50 m/s (optional) Ultra — Measure velocities up to 50 m/s and gain access to the High Resolution Upgrade, offering a minimum velocity measurement range of 1 mm/s (optional) High Resolution Upgrade — Minimum velocity measurement range of 1 mm/s (optional) Velocity Upgrade M — Increase the maximum velocity of any velocity option by 2.5 m/s (optional)
- Measurement Options
- Velocity — Measurement of vibration velocity (standard) Displacement — Measurement of vibration displacement with continuously adjustable ranges from 10 nm to 100 m (optional) Acceleration — Measurement of vibration acceleration with continuously adjustable ranges from 10 m/s² to 100 million m/s² (optional)
07
Inputs and outputs
Analog signal outputs (BNC)
Power output for Fiber Head
Fiber-optic connector (LC duplex)
LEMO signal inputs (12 channels)
BNC RF signal inputs (up to 50 MHz)
Power button
USB port (Type-A)
Optical communication port
Ethernet port: for device communication/data
Power input
USB port (Type-C)
Ethernet port: for device communication/data
GNSS antenna connector
Multipurpose SMB connectors
08
Tripod with Fluid Head
OptionPrecisely align your vibrometer with high-quality tripods from Manfrotto
Transport bag
OptionCompact and lightweight transport bag for outdoor measurements
Transport case
Standardfor single-point vibrometer Sturdy and waterproof Peli case for safe storage and transport of the vibrometer. External dimensions (L x W x H): 61.9 x 49.2 x 22.3 cm
IR Detector Card
StandardConverts invisible infrared light into a visible light spot
09
SMART Lab Software
Measurement software for the entire SMART series: synchronized acquisition, time and frequency domain analysis, and 3D model measurements.
SMART Lab Software: One Software for All Devices
Use SMART Lab software with all devices in the SMART series to unlock their full potential. Synchronized data from various devices is processed simultaneously, providing unparalleled flexibility for your measurement setups.
Measurements Supported by 3D Models
Easily measure complex structures with intelligent calibration and simple generation of measurement points. The fully automatic calibration process saves time and costs. Convincing vibration visualizations of complex structures are achieved through seamless animation of measurement data on the 3D models.
Advanced Capture and Analysis
Time and frequency data can be analyzed in real-time, even while the measurement is still ongoing. This allows you to check settings at the start of the measurement process and achieve faster and more reliable results.

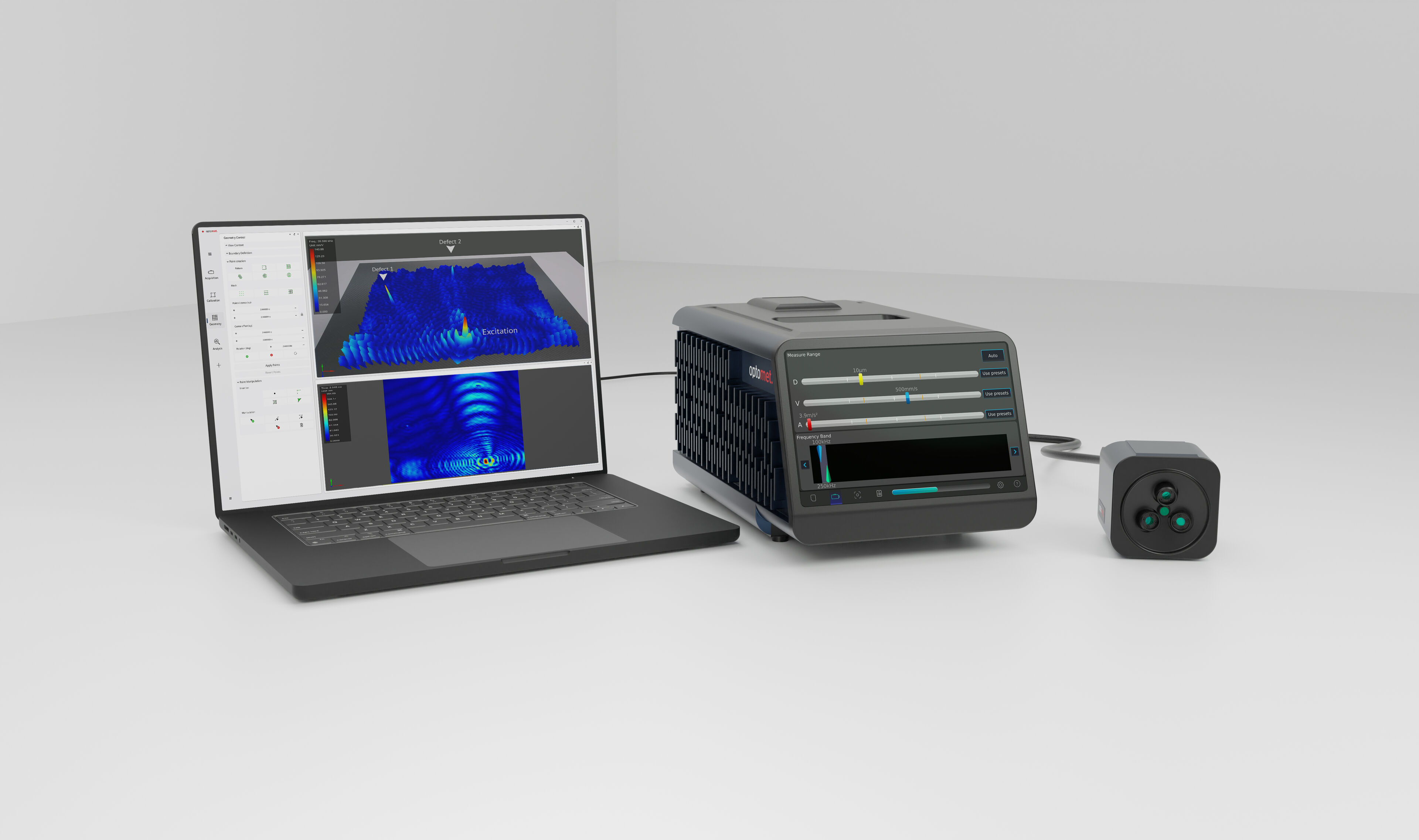

SMART 3D-Fiber: Maximum Precision in Vibration Measurement
The SMART 3D-Fiber perfectly demonstrates the versatility of the new SMART series: Using the same hardware as the SMART Multi-Fiber, it enables non-contact vibration measurements in all three spatial directions. It achieves this by combining data from three interferometers in a compact, ultra-precise device, revolutionizing vibration analysis with laser Doppler vibrometers.
By simply replacing the 3D-Fiber Head with up to four heads separated from the housing, the SMART Multi-Fiber can acquire vibration data on four channels simultaneously. This flexibility enables engineers, researchers, and students alike to gain unprecedented insights into both in-plane and out-of-plane vibration behavior.
With its unique combination of features, the SMART 3D-Fiber is an all-in-one laboratory, combining high-precision 3D vibration measurements with multichannel data acquisition and an arbitrary waveform generator. Seamless synchronization with other devices in the SMART series makes the SMART 3D-Fiber the ideal choice for researching and developing complex products.
Vibration measurement in research, development and industry – Optomet offers the right solution for your requirements.
