All-in-One Precision
Start SMART: Your intelligent introduction to vibrometry, combining innovative technology with practical expertise for advanced measurements and data analysis.
The SMART Single+ combines a laser Doppler vibrometer, data acquisition system, and signal generator in a single instrument, enhancing measurement efficiency and connectivity for engineers and researchers.
01
Determine the test object's transfer function
The SMART Single+ laser Doppler vibrometer is ideal for determining the transfer function of test objects. This capability is crucial for characterizing the dynamic properties of materials and components. The Single+ enables non-contact vibration analysis to assess the vibrational behavior of objects—essential for quality control and product development.
02
Exceptionally easy to handle: lightweight with outstanding performance
Our SMART Single+ delivers outstanding performance with minimal weight, making it ideal for a wide range of applications. Its lightweight design makes transport and setup easy, saving time and increasing measurement efficiency.
03
Integrated data visualization and analysis
This advanced instrument features integrated data visualization and analysis capabilities. Users can view and analyze measurement results directly on the instrument without having to export the data for separate evaluation. This feature saves time and enables immediate assessment of measurement data, which is particularly useful for field applications.
04
Synchronized measurements

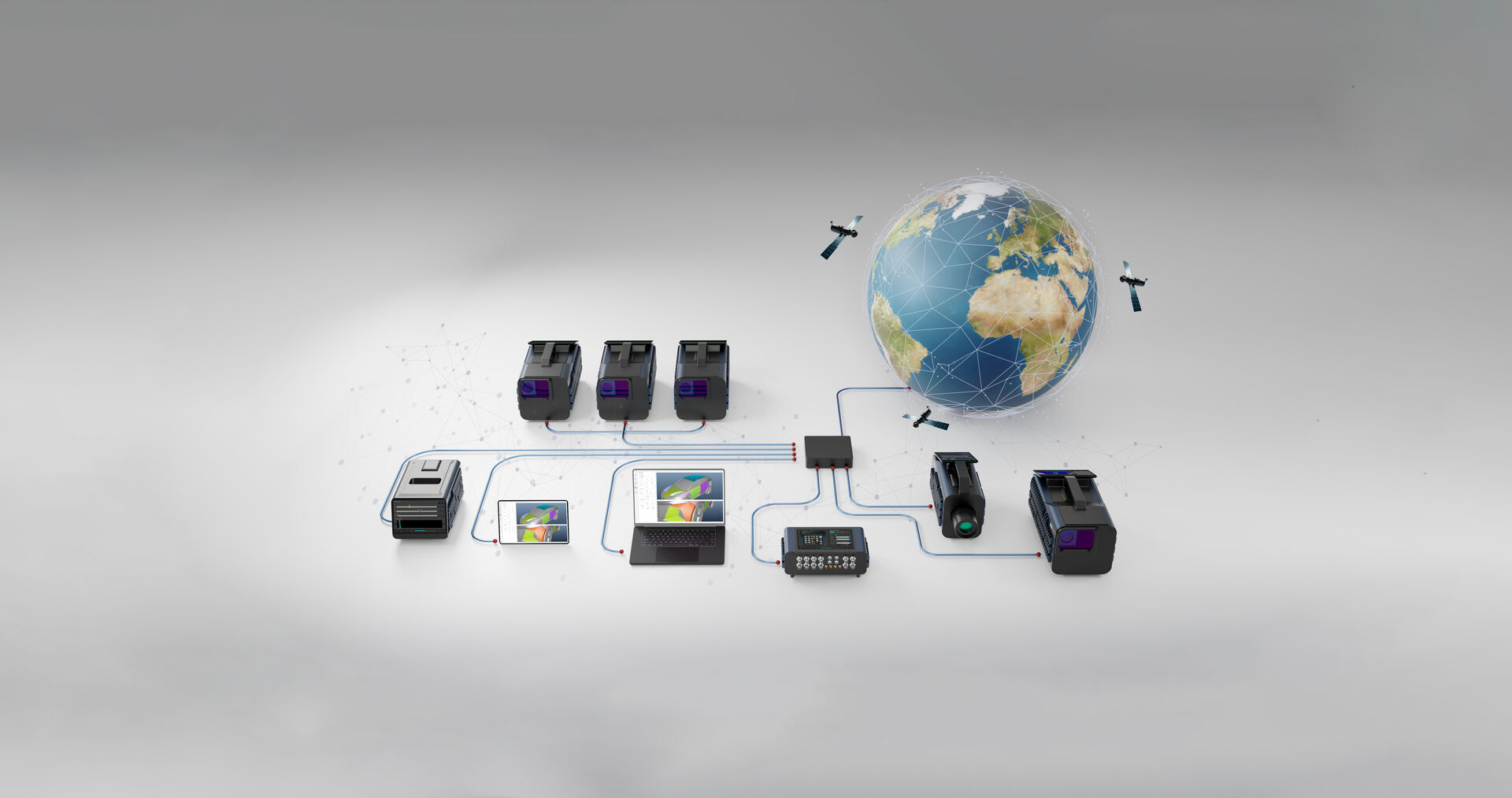

The SMART Single+ supports synchronized measurements, an essential feature for complex analysis requirements. This allows users to measure multiple points simultaneously using several instruments, which is crucial for accurately evaluating the dynamic properties of test objects. This enhances the accuracy and reliability of the acquired data.
05
Configure your SMART Single+
Combine standard equipment and options to build your laser vibrometer.
Frequency bandwidth
Choose one tierUpgrades
Multiple selectionVelocity range
Choose one tierUpgrades
Multiple selectionMeasured quantities
Multiple selection06
Technical data
- Measurement Quantities
- Velocity, displacement, acceleration
- Frequency range
- DC to 50 MHz Freely configurable low-pass filter for velocity, displacement, and acceleration signals
- Max. Speed
- 50 m/s
- Measurement Ranges
- Freely adjustable measurement range limits between 1 mm/s and 50 m/s for velocity—10 nm and 100 m for displacement—10 m/s² and 100 million m/s² for acceleration
- Signal Processing
- Digital (FPGA-based)
- Filter
- Low-pass filters defined by a selected frequency range Freely configurable high-pass filter for displacement Tracking filter: on / off
- User Interface
- 7" Full HD+ touchscreen with 1000 nits peak brightness
- Dimensions
- Length × width × height (without handle and lens): 288 × 136 × 198 mm
- Weight
- ~ 5.5 kg + lens
- Power Supply
- 100 - 240 V AC (50-60 Hz) or 12 V DC
- Portability
- Convenient all-in-one design for effortless transport and easy setup
- Calibration interval
- Every 24 months (recommended)
- Working distance
- - Variable working distance from 6 mm to 100 m - Choice of different lenses
- Laser wavelength
- - Measurement laser: 1550 nm, targeting laser: 510-530 nm
- Laser safety class
- Measurement laser
- Output power: <10 mW, Class 1
- Targeting laser
- Output power: <1 mW, Class 2
- Optics
- Automatic and manual focusing
- Operating temperature
- -10 °C to 40 °C
- Storage Temperature
- -10 °C to 65 °C
- Relative Humidity
- Max. 80%, non-condensing
- Remote Control
- - Simultaneous connection and control of multiple vibrometers for reference, multipoint, and 3D vibration measurements
- Data Acquisition
- x
- Measurement Analysis
- - Real-time Fast Fourier Transform for rapid data analysis - Frequency-domain display with up to 536 million FFT lines - Phase-accurate calculation of the frequency response function (FRF) - Live spectrogram of ongoing measurement FFTs
- Data Import/Export
- - Export time- and frequency-domain data to .csv, .h5, or .mat files - Export time-domain data as a .wav audio file - Save and load projects in the native file format
- Frequency Options
- Frequency 250 kHz — Measurement of frequencies up to 250 kHz, covering the entire acoustic range and beyond (standard) Frequency 5 MHz — Measurement of frequencies up to 5 MHz (option) Frequency 15 MHz — Measurement of frequencies up to 15 MHz (option) Frequency 25 MHz — Measurement of frequencies up to 25 MHz (option) Frequency 35 MHz — Measurement of frequencies up to 35 MHz (option) Frequency 50 MHz — Measurement of frequencies up to 50 MHz, pushing the limits of what is technologically possible (option) Frequency Upgrade M — Increase the frequency limit of any option by 500 kHz (option) Frequency Upgrade L — Increase the frequency limit of any option by 1 MHz (option) Frequency Upgrade XL — Increase the frequency limit of any option by 5 MHz (option)
- Velocity Options
- Basic — Continuously adjustable velocity measurement range from 10 mm/s to 15 m/s (standard) High Speed — Measure velocities up to 25 m/s (option) Master — Measurement of velocities up to 50 m/s (option) Ultra — Measure velocities up to 50 m/s and gain access to the High Resolution Upgrade, featuring a minimum velocity measurement range of 1 mm/s (option) High Resolution Upgrade — Minimum velocity measurement range of 1 mm/s (option) Velocity Upgrade M — Increase the maximum velocity of any velocity option by 2.5 m/s (option)
- Measurement Options
- Velocity — Measurement of vibration velocity (standard) Displacement — Measurement of vibration displacement with continuously adjustable ranges from 10 nm to 100 m (option) Acceleration — Measurement of vibration acceleration with continuously adjustable ranges from 10 m/s² to 100 million m/s² (option)
07

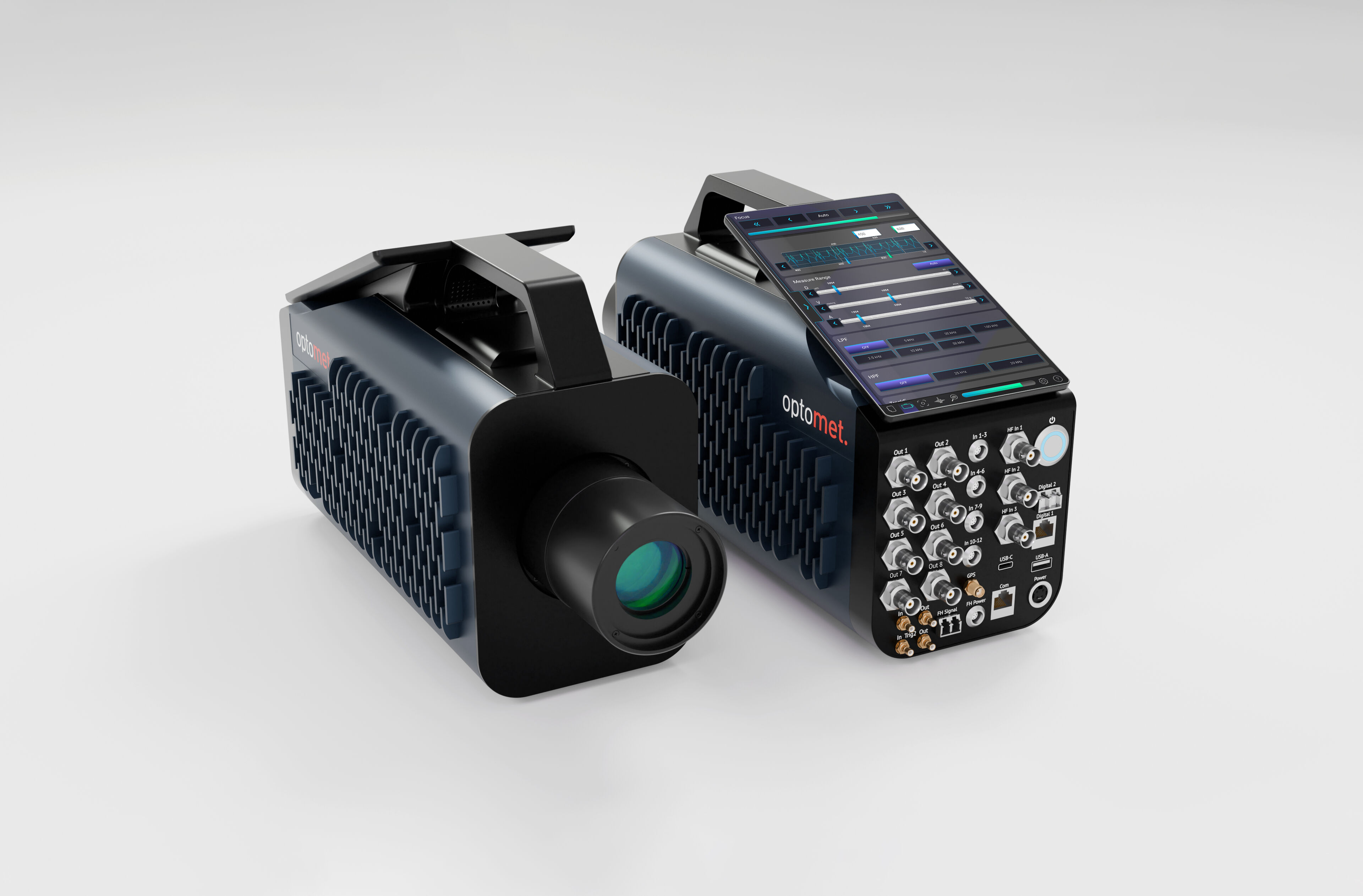

Inputs and outputs
Analog signal outputs (BNC)
LEMO signal inputs (12 channels)
BNC RF signal inputs (up to 50 MHz)
Power button
Optical communication port
Ethernet port: for device communication/data
USB port (Type-C)
USB port (Type-A)
Power input
Ethernet port for device communication/data
Power output
GNSS antenna connector
Fiber-optic connector (LC duplex)
Multi-purpose SMB connectors
08
Tripod with Fluid Head
OptionPrecisely align your vibrometer with high-quality tripods from Manfrotto
Transport bag
OptionCompact and lightweight transport bag for outdoor measurements
Transport case
Standardfor single-point vibrometer Sturdy and waterproof Peli case for safe storage and transport of the vibrometer. External dimensions (L x W x H): 61.9 x 49.2 x 22.3 cm
IR Detector Card
StandardConverts invisible infrared light into a visible light spot
09
SMART Lab Software
Measurement software for the entire SMART series: synchronized acquisition, time and frequency domain analysis, and 3D model measurements.
SMART Lab Software: One Software for All Devices
Use SMART Lab software with all devices in the SMART series to unlock their full potential. Synchronized data from various devices is processed simultaneously, providing unparalleled flexibility for your measurement setups.
Measurements Supported by 3D Models
Easily measure complex structures with intelligent calibration and simple generation of measurement points. The fully automatic calibration process saves time and costs. Convincing vibration visualizations of complex structures are achieved through seamless animation of measurement data on the 3D models.
Advanced Capture and Analysis
Time and frequency data can be analyzed in real-time, even while the measurement is still ongoing. This allows you to check settings at the start of the measurement process and achieve faster and more reliable results.
The Ultimate Lab Instrument—Unlock Greater Efficiency with SMART Single+
Part of the groundbreaking SMART series, SMART Single+ is so much more than a laser Doppler vibrometer—it is an entire lab in a single instrument. In addition to high-precision, non-contact, single-point vibration measurement with no impact on the test object, SMART Single+ is a synchronous, multi-channel data acquisition system with an integrated arbitrary waveform generator.
Modularity is in the DNA of SMART Single+: As an expandable vibration characterization system, it synchronizes precisely with any other instrument in the SMART series and scales flexibly with your requirements. It helps engineers, researchers, and students streamline their measurement processes by eliminating the need for separate DAQ solutions or signal generators.
Even as a standalone instrument, it boosts efficiency through faster, optimized signal processing, enhanced connectivity with other devices via WiFi, Bluetooth, and USB, and a versatile 7-inch touch display that lets you adjust all settings on the fly. By integrating all these features into a radically compact design and combining them with an intuitive, powerful all-in-one software solution, SMART Single+ is the ideal choice for engineering, development, and research.
