Fiber-Micro-Manipulator

Discover intriguing applications in medical technology with our innovative system.

The Fiber-Micro-Manipulator is a state-of-the-art tool designed for precise laser alignment. With its innovative mirror-controlled system, operated effortlessly by a joystick with a high gear ratio, it provides unparalleled control over the laser beam direction. This advanced technology works in perfect synergy with the Fiber vibrometer, harnessing the advantages of SWIR laser capabilities to accurately measure dark, rough, or glowing surfaces with ease.

For optimal alignment precision, a visible targeting laser is integrated into the system. This laser assists in achieving the desired alignment, ensuring accuracy and efficiency in the setup process. The compact and lightweight design of the sensing head facilitates seamless integration into existing systems, while the autofocus feature enables flexibility in achieving different working distances and small spot sizes.

When combined with a microscope, the Fiber-Micro-Manipulator unlocks a new level of precision alignment possibilities. This unique combination allows for separate measurements, enabling researchers, for example, to analyze the ear canal while ensuring precise alignment of the laser beam.

The human ear

The human ear represents an incredibly demanding system for amplifying sound and detecting vibrations. With the advent of state-of-the-art laser Doppler vibrometers, we now have the ability to explore the intricate vibrational and dynamic characteristics of hearing mechanics like never before. These cutting-edge instruments offer unmatched accuracy, resolution, and user-friendly operation, enabling researchers to delve into new dimensions of understanding.

Laser vibrometers have become an indispensable tool for individuals actively engaged in the design, development, quality control, calibration, and certification of middle ear implants. By harnessing the power of laser vibrometry, professionals in this field gain invaluable insights into the performance and behavior of these implants. This technology empowers them to make informed decisions, refine designs, ensure optimal functionality, and enhance the overall quality of their creations.

Autofocus Pro Mid-Range Fiber Head

  • Dimension (L x B x H): 241 x 100,5 x 44 mm

  • Removable fiber cable

  • Autofocus, remote focus, manual focus

  • Working distance: 135 mm ... 10 m

  • Min. focus spot size (typ.): 42 µm at 135 mm

  • Smaller spot size of the pilot laser

  • Compatible with Micro-Manipulator

Characteristics

  • Compact, flexible und robust sensing head

  • Exzellent signal level

  • Cable length flexible 2, 5, 20... Meters

  • Ethernet-Digital-Output (1 GBit) und with remote feature

  • 32 Bit Dynamik range for displacement measurements

  • Frequency bandwidths: DC to 25 MHz (Digital Real Time)

  • Vibrational velocities up to ±30 m/s

  • Displacement resolutions down to 50 Femtometer

  • Multiplex feature

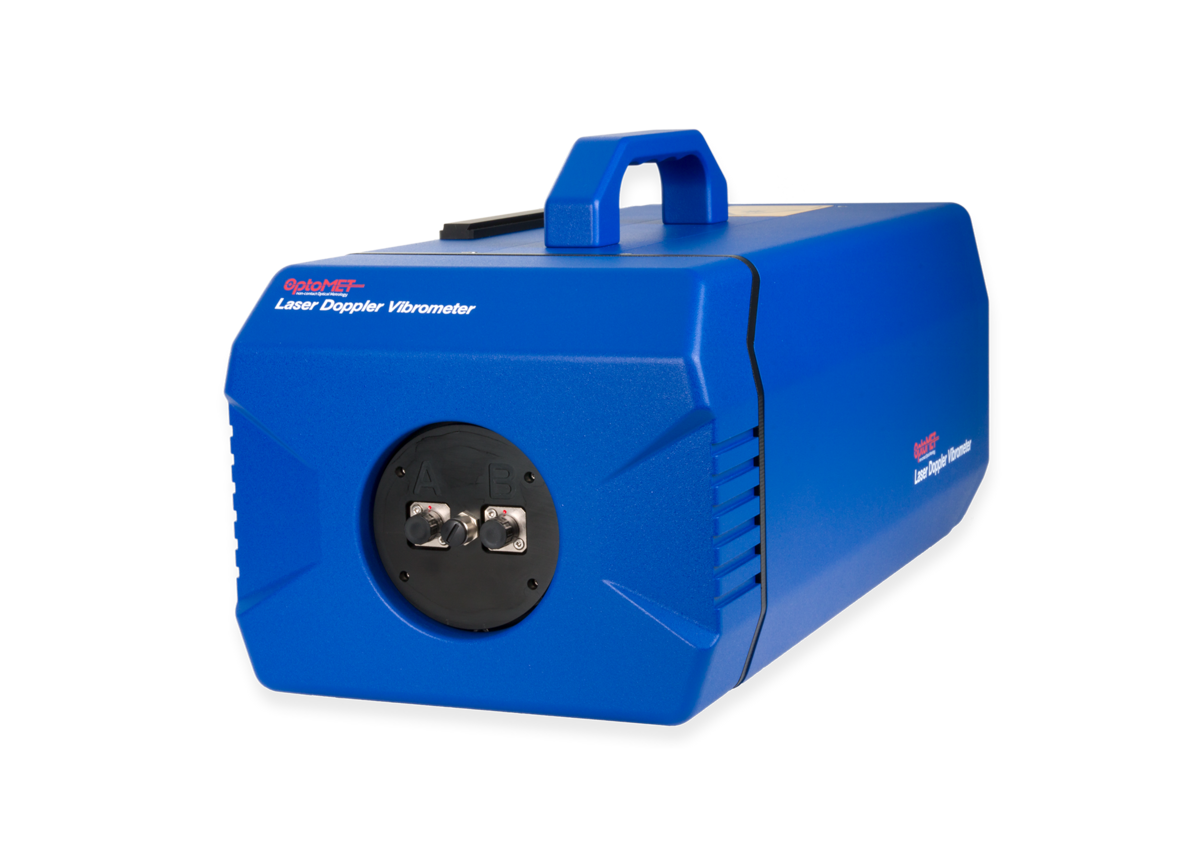

Technical Specifications

A detailed list of all vibrometer characteristics, including all hardware and software features, can be found in the vibrometer data sheet in Support & Datasheets.

Category Characteristics
Laser source SWIR-Laser
Laser wavelength Measurement laser: 1550 nm
  Targeting laser: 510-530 nm
Laser class Measurement laser: output power: <10 mW, class 1
  Targeting laser: output power: <1 mW, class 2
Measured quantity Velocity, Displacement, Acceleration
Frequency bandwidths DC to 25 MHz
Max. vibrational velocity 25 m/s
Output signal (digital) GBit-Ethernet (RJ45) / WiFi
Output signal (analogue) 3 x Standard BNC Buchse
Signal processing Digital (Optomet UltraDSP)
User interface output Color screen 3.5" + 20 segment LED bargraph
User interface input Touch screen, knobs with push-button, key switch (power)
Dimensions Length x width x height (excluding handle and lens): 380 x 180 x 148 mm
Weight 8 kg
Mounting Standard tripod screw thread
Power supply 110 -240V AC (50-60Hz) oder 12V DC
Power consumption 27 Watt
Operating temperature range 0°C to 40°C

Laser Vibrometer Measuring- & Data Acquisition Software

Single Point Laser Vibrometer Analysis Software

OptoGUI Software

OptoGUI is an extensive and intuitive software for remote control, data acquisition, and data analysis when working in single-point mode. Data transfer is realized via a loss-free digital Gigabit Ethernet connection. Click for detailed information about OptoGUI.

Available Decoders

A wide variety of high-performance real-time decoders are available for the evaluation of the interferometric measuring signals. The Optomet UltraDSP technology enables the measurement of frequencies up to 25 MHz and vibrational velocities up to 25 m/s with the Fiber-Series, displacements can be resolved to less than 100 fm. All vibrometers incorporate a velocity decoder, and displacement and acceleration decoders are optionally available. Numerous measuring ranges per decoder ensure that measurements can always be performed with the optimum sensitivity.

Decoders can be easily retrofitted or upgraded. Start with a basic system and adapt the capabilities of the measuring instrument as required. This requires no return of the instrument to the factory and no waiting times for your production or research project. The table below provides an overview of the configuration options. We will also be happy to assist you in the selection of the best decoder for your measuring task.



Start

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-0N

7

2.5 m/s

DC - 100 kHz

required

Displacement Decoder D-DD-0N

19





optional

Acceleration Decoder D-AD-0N

7





optional

Basis

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-1N

8

5 m/s

DC - 500 kHz

required

Displacement Decoder D-DD-1N

19





optional

Acceleration Decoder D-AD-1N

8





optional

Sense

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-2N

11

5 m/s

DC - 1 MHz

required

Displacement Decoder D-DD-2N

19





optional

Acceleration Decoder D-AD-2N

11





optional

Sense Remote

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-2N-R

11

5 m/s

DC - 25 kHz

required

Displacement Decoder D-DD-2N-R

19





optional

Acceleration Decoder D-AD-2N-R

11





optional

Sense Speed

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-2N-12

12

12 m/s

DC - 1 MHz

required

Displacement Decoder D-DD-2N-12

19



optional

Acceleration Decoder D-AD-2N-12

12



optional

Speed

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-3N-12

9

12 m/s

DC - 2,5 MHz

required

Displacement Decoder D-DD-3N-12

19





optional

Acceleration Decoder D-AD-3N-12

9





optional

High Speed

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-3N

11

25 m/s

DC - 2,5 MHz

required

Displacement Decoder D-DD-3N

19





optional

Acceleration Decoder D-AD-3N

11





optional

Ultra High Speed

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-3N-30

12

30 m/s

DC - 2,5 MHz

required

Displacement Decoder D-DD-3N-30

19





optional

Acceleration Decoder D-AD-3N-30

12





optional

High Frequency

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-4N

9

12 m/s

DC - 10 MHz

required

Displacement Decoder D-DD-4N

19





optional

Acceleration Decoder D-AD-4N

11





optional

Master

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-5N

14

25 m/s

DC- 10 MHz

required

Displacement Decoder D-DD-5N

19





optional

Acceleration Decoder D-AD-5N

14





optional

Master+

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-5N-25

14

25 m/s

DC- 25 MHz

required

Displacement Decoder D-DD-5N-25

19





optional

Acceleration Decoder D-AD-5N-25

14





optional

 Master++

Decoder Name

Number of measuring ranges

Max. vibrational velocity

Frequency

Comments

Velocity Decoder D-VD-5N-30

15

30 m/s

DC- 25 MHz

required

Displacement Decoder D-DD-5N-30

19





optional

Acceleration Decoder D-AD-5N-30

15





optional

Accessories

Laser Vibrometer Transport Case

Single Point Vibrometer Transport Case

Stable and waterproof Peli case for safe keeping and transport of vibrometer.

External dimension (L x B x H): 61.9 x 49.2 x 22.3 cm

Laser Vibrometer Transport Bag

Transport Bag

Compact und light transport bag for the outdoors-measurements

Inrared Laser Light Detection Card

IR-Detector Card

Transforming the not-visible infrared light into a spot of visible light.

Powerbank Portable Laser Vibrometer

Mobile Battery

Portable battery charger, external battery power bank. For powering the vibrometer when performing outdoor measurements.

Transport Case Autofocus Fiber Head

Transport Case for Autofocus Fiber Head

Stable and waterproof transport case.

Laser Vibrometer Tripod with Fluid Head

Tripod with Fluid Head

Precisely align your vibrometer with high quality tripods by Manfrotto.

Laser Vibrometer Measurement Head Positioning Stage

Positioning Stage

Precisely align your Fiber measurement head.
