#Measurement technology
High Dynamic Range
Demonstration of the dynamic range using a quartz clock movement: The shaker moves the component macroscopically, while the vibrometer simultaneously resolves the 32.768 kHz quartz oscillation in the nanometer range. 11 orders of magnitude in a single measurement. [2019| 1:24 min]
Open video page →

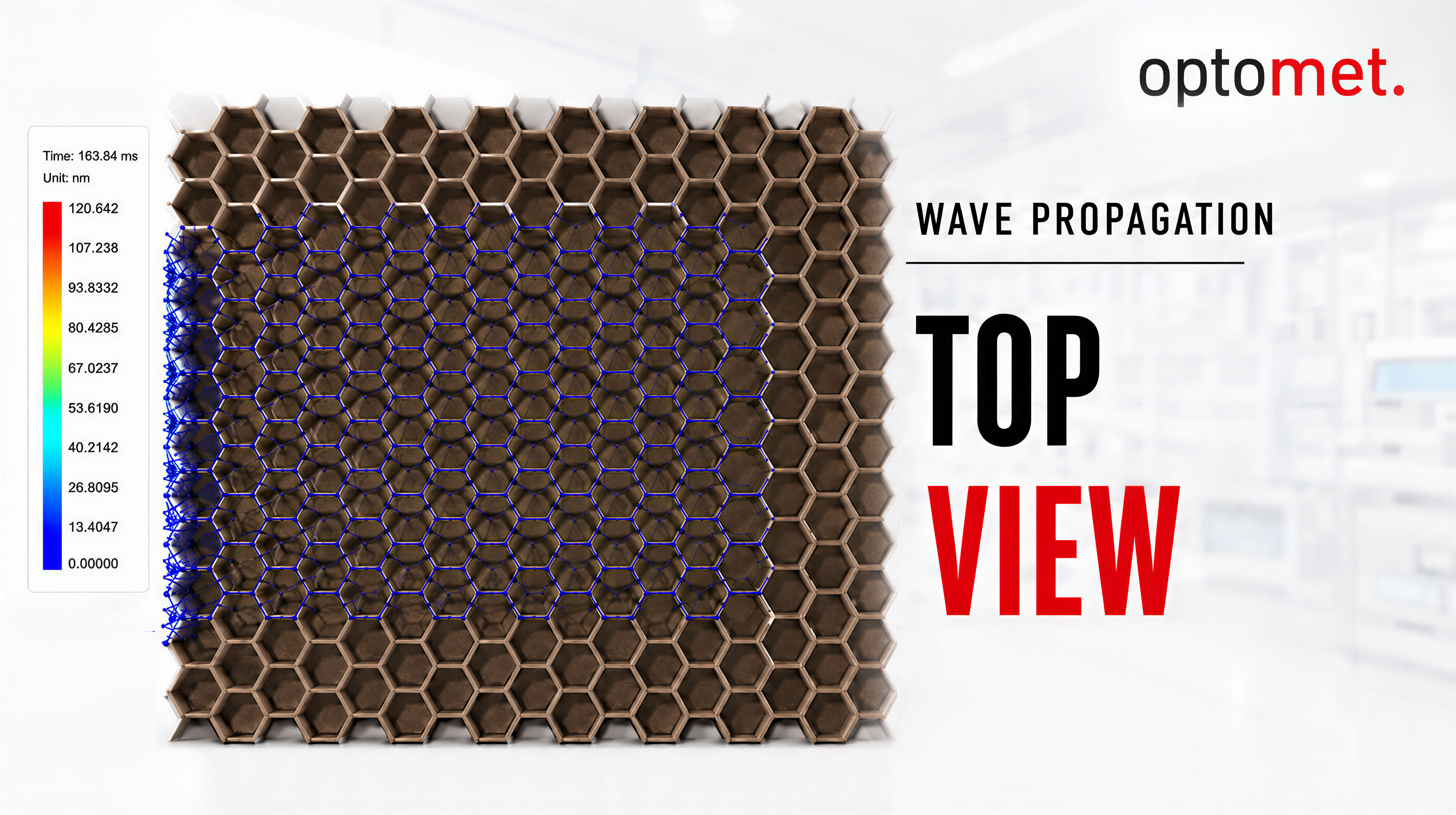

Time-domain view – top view
Time-domain visualization of vibration propagation in a honeycomb structure, viewed from above. The spatially resolved measurement shows the vibration field propagating across the structure, with displacement amplitudes in the nanometer range. [2020 | 0:13 min]
Open video page →

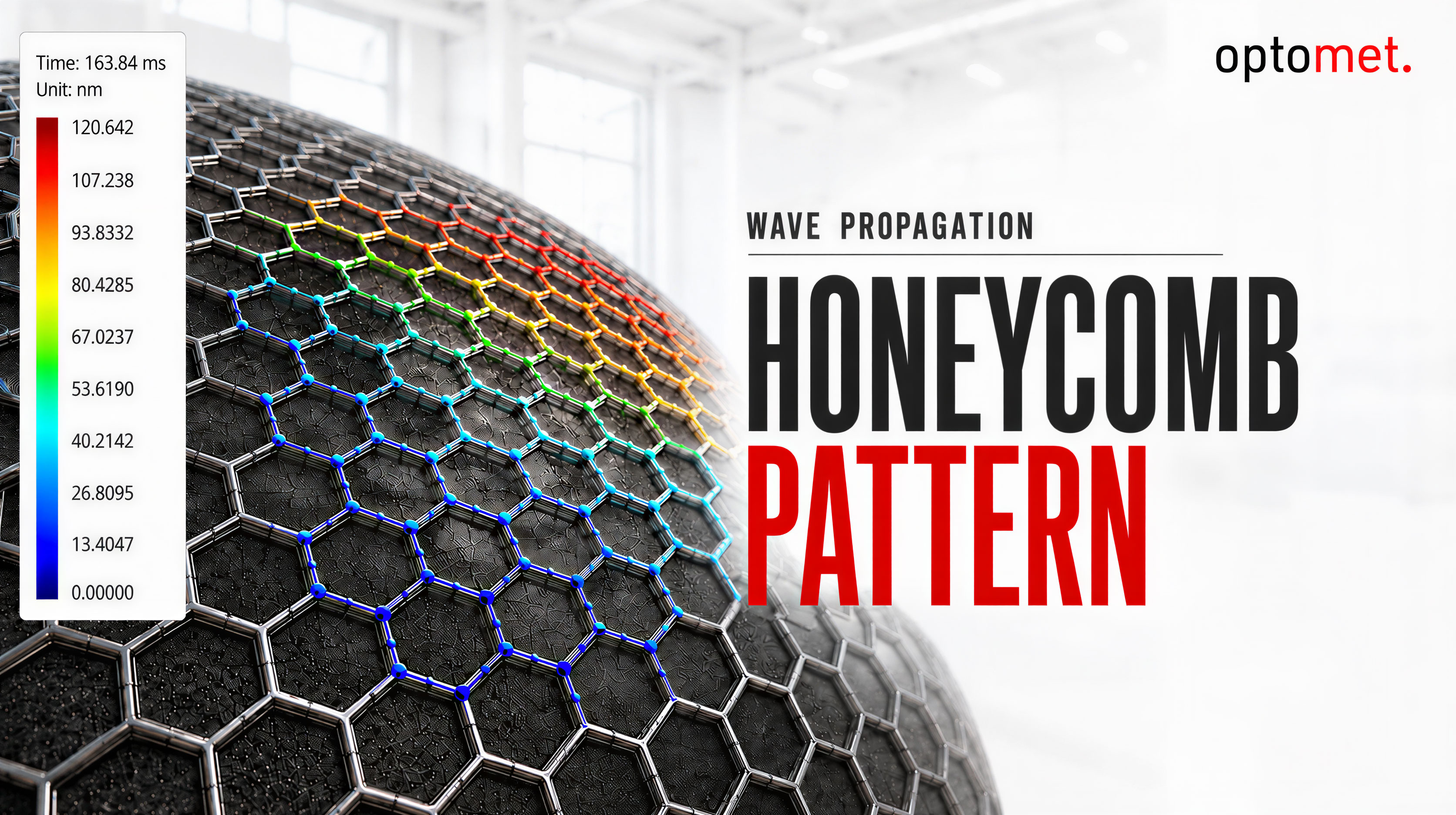

Time-domain view – angled perspective
Time-domain measurement of the honeycomb structure in an oblique view: From this perspective, the spatial propagation of the wave across the surface is particularly easy to see. [2020 | 0:11 min]
